for MEMS Products

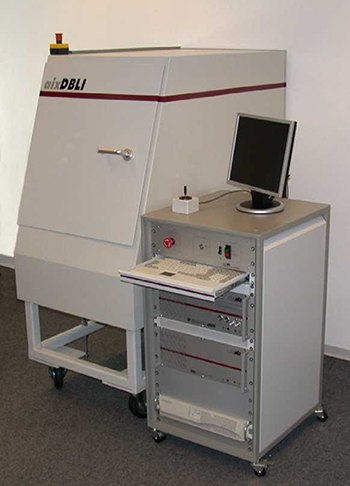

The Double Beam Laser Interferometer (aixDBLI) for the measurement of d33 offers a proven accuracy (x-cut quartz) up to 0.2 pm/V. The main feature of the system is the ultra fast acquisition time of a few seconds for a single measurement. Based on a new data acquisition algorithm, the measurement speed is enhanced by a factor of 100. This enables for the first time the comparison of electrical and mechanical data for thin films recorded at the same excitation frequency. Due to the the differential measurement principle the influence of sample bending is eliminated, which is the major obstacle using atomic force microscopes (AFM) for these types of measurements.









>>More details

Measurements

  • Electromechanical large signal strain and polarization measurements.
  • Piezoelectric small signal coefficient and dielectric constant vs. dc bias voltage measurements. From these values the coupling coefficient can be derived by using the additional aixPlorer software tool if the stiffness value is known.
  • Fatigue of electric and electromechanical properties.
